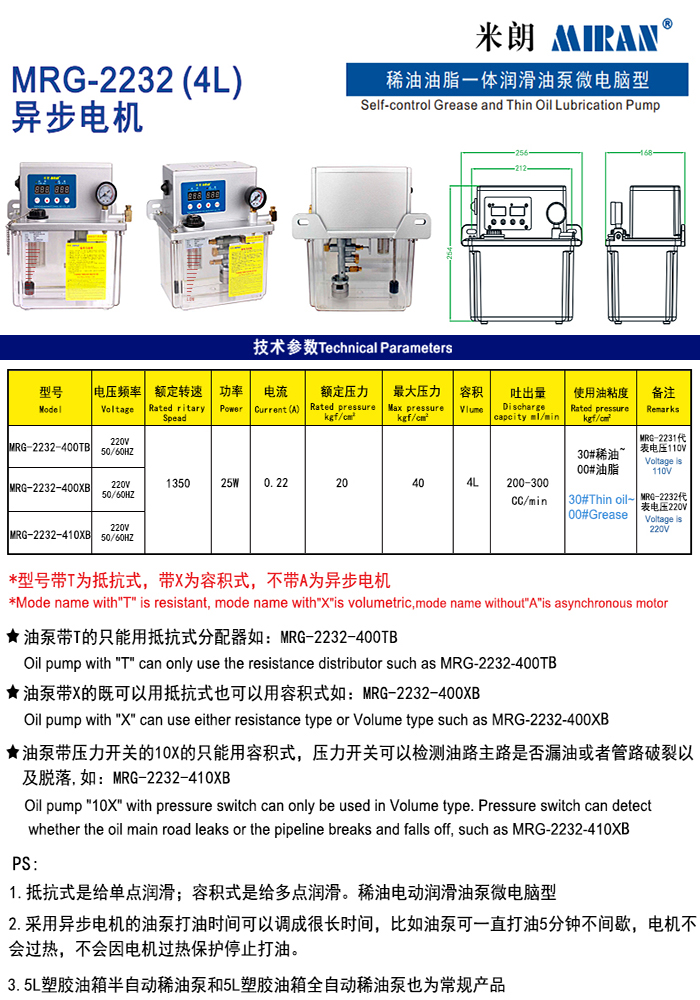

*型號帶T為抵抗式，帶X為容積式,帶A為罩極電機,
*Mode name with " T" is resistant, mode name with “X” is volumetric,mode name with “A” is shade - pole motor

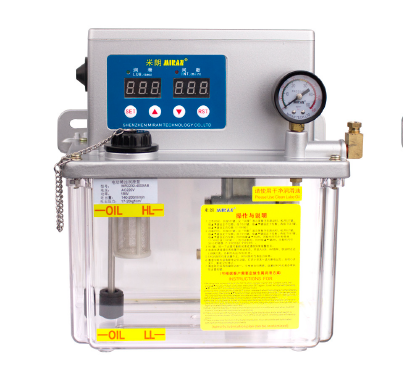

1 .工作時間：請長按鍵,見數字在跳動時，松開S E T鍵，按鍵SET ▲ ▼ 設定個位數;按下SET鍵，按▲ ▼ 鍵設定十位數；再按下SET鍵，一下SET鍵設定百位數(1-999秒)。
2.間歇時間：請長按SET鍵，見另一個顯示屏數字在跳動時，松開SET鍵，按鍵▲ ▼ 鍵設置個位數；按一下SET鍵，同時按鍵▲▼約2秒，間歇時間可分秒轉換 ( 1 -9 9 9分或1 - 9 9 9秒）。
3.RST 鍵 按住此鍵可重新潤滑或清除異常報警。
4.電路電源接通后系統屬于給油狀態，并進入LUB、 INT循環，供油時左邊LUB綠燈亮，間歇時右邊INT紅燈亮。
5.ERO 閃爍時代表油量不足，ERP閃爍時代表壓力異常。
6.數顯中框內設有斷電記憶功能，打開小開關﹄進入斷電記憶。關閉小開關﹄，斷電記憶停止。
7.數顯框內設有按鍵鎖功能﹄，可根據自行需要設置好時間后是否需鎖住設置按鍵。
（可根據客戶需要定做專屬潤滑方案）

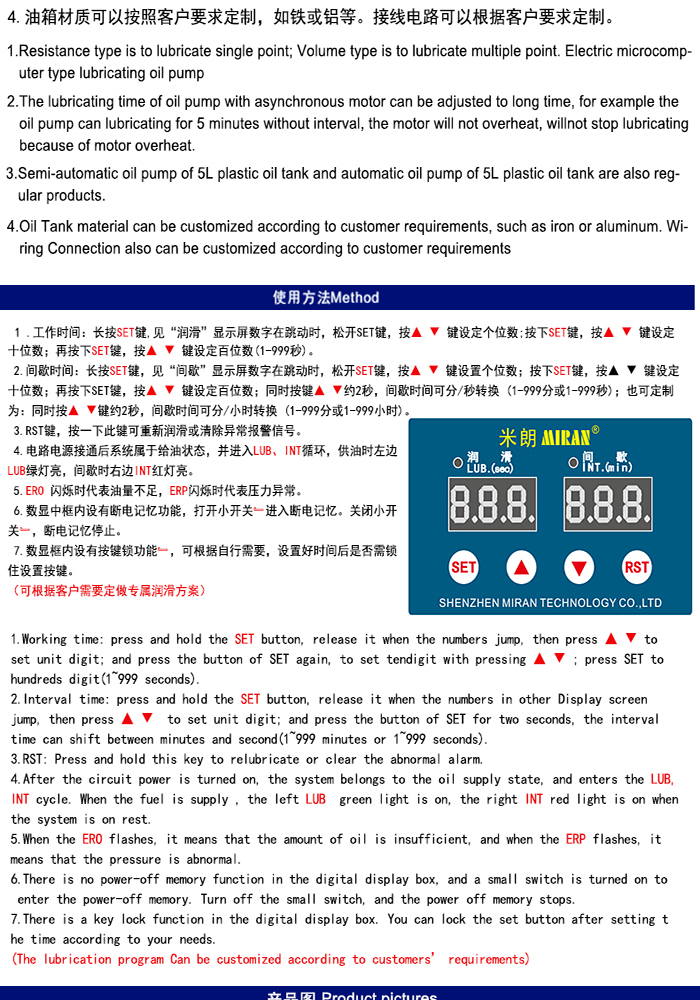

1.Working time: press and hold the SET button, release it when the numbers jump, then press ▲ ▼ to set unit digit; and press the button of SET again, to set ten digit with pressing ▲ ▼; press SET to hundreds digit(1~999 seconds).
2.Interval time: press and hold the SET button, release it when the numbers in other Display screen jump, then press ▲ ▼ to set unit digit; and press the button of SET for two seconds, the interval time can shift between minutes and second(1~999 minutes or 1~999 seconds).
3.RST: Press and hold this key to relubricate or clear the abnormal alarm.
4.After the circuit power is turned on, the system belongs to the oil supply state, and enters the LUB, INT cycle. When the fuel is supply , the left LUB green light is on, the right INT red light is on when the system is on rest.
5.When the ERO flashes, it means that the amount of oil is insufficient, and when the ERP flashes, it means that the pressure is abnormal.
6.There is no power-off memory function in the digital display box, and a small switch is turned on to enter the power-off memory. Turn off the small switch, and the power off memory stops.
7.There is a key lock function in the digital display box. You can lock the set button after setting the time according to your needs.

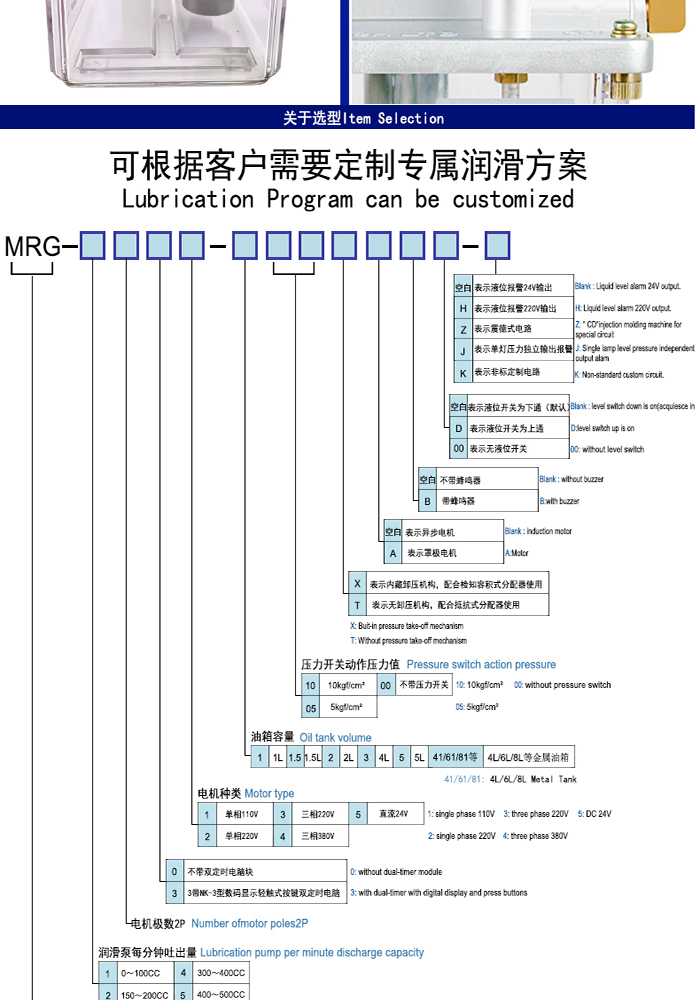

(The lubrication program Can be customized according to customers’ requirements)
米朗簡介

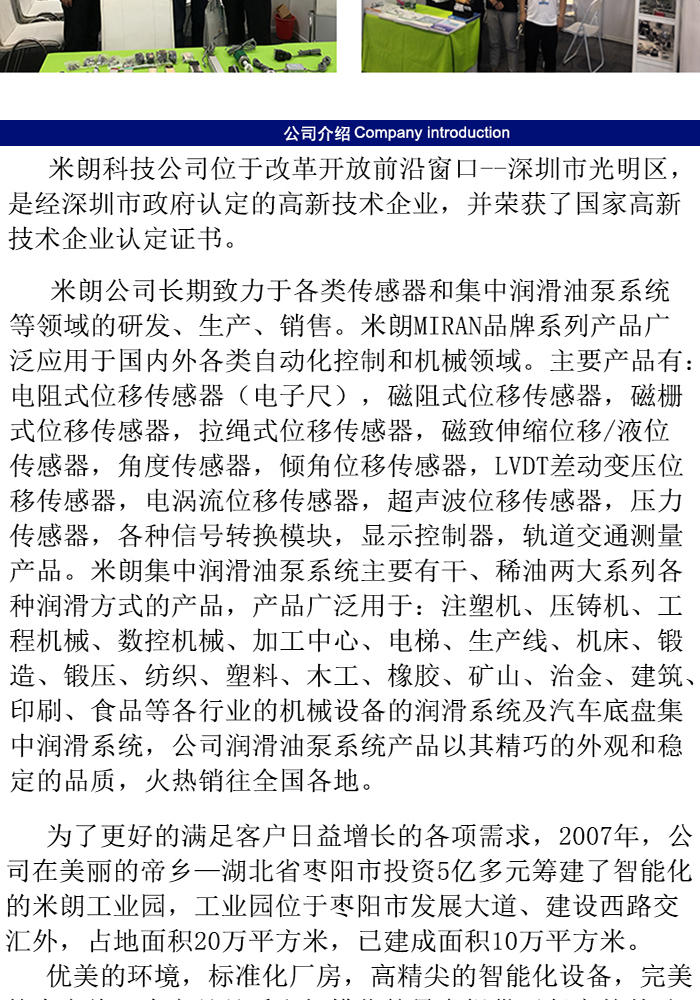

米朗科技公司位于改革開放前沿窗口--深圳市光明區，是經深圳市政府認定的高新技術企業，并榮獲了國家高新技術企業認定證書。
米朗公司長期致力于各類傳感器和集中潤滑油泵系統等領域的研發、生產、銷售。米朗MIRAN品牌系列產品廣泛應用于國內外各類自動化控制和機械領域。主要產品有：電阻式位移傳感器（電子尺），磁阻式位移傳感器，磁柵式位移傳感器，拉繩式位移傳感器，磁致伸縮位移/液位傳感器，角度傳感器，傾角位移傳感器，LVDT差動變壓位移傳感器，電渦流位移傳感器，超聲波位移傳感器，壓力傳感器，各種信號轉換模塊，顯示控制器，軌道交通測量產品。米朗集中潤滑油泵系統主要有干、稀油兩大系列各種潤滑方式的產品，產品廣泛用于：注塑機、壓鑄機、工程機械、數控機械、加工中心、電梯、生產線、機床、鍛造、鍛壓、紡織、塑料、木工、橡膠、礦山、治金、建筑、印刷、食品等各行業的機械設備的潤滑系統及汽車底盤集中潤滑系統，公司潤滑油泵系統產品以其精巧的外觀和穩定的品質，火熱銷往全國各地。
為了更好的滿足客戶日益增長的各項需求，2007年，公司在美麗的帝鄉—湖北省棗陽市投資5億多元籌建了智能化的米朗工業園，工業園位于棗陽市發展大道、建設西路交匯外，占地面積20萬平方米，已建成面積10萬平方米。

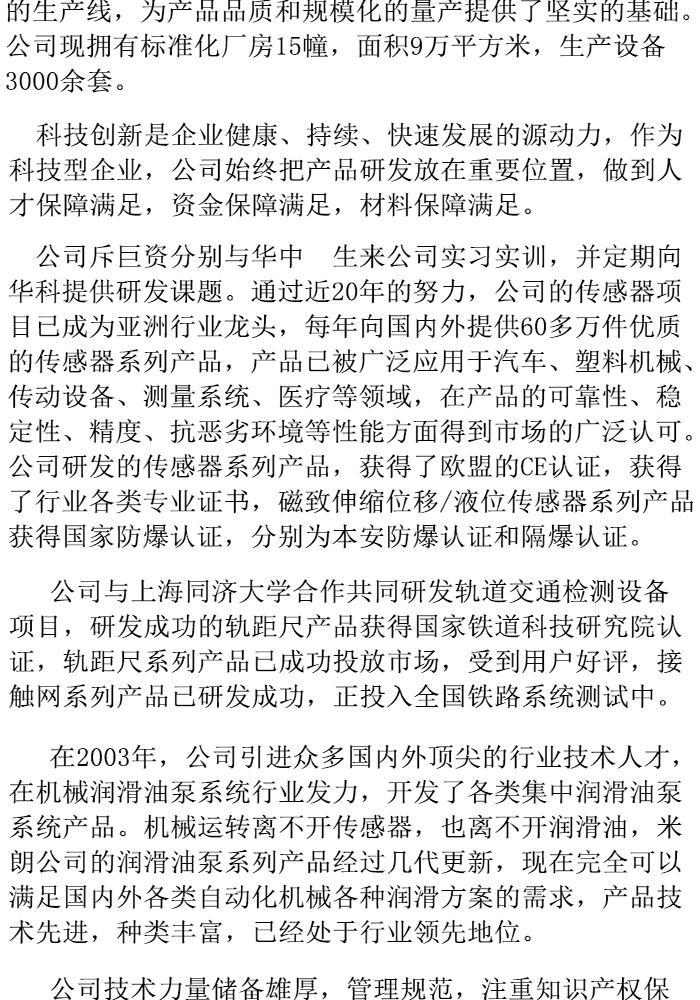

優美的環境，標準化廠房，高精尖的智能化設備，完美的生產線，為產品品質和規；牧慨a(chǎn)提供了堅實的基礎。公司現擁有標準化廠房15幢，面積9萬平方米，生產設備3000余套。
科技創新是企業健康、持續、快速發展的源動力，作為科技型企業，公司始終把產品研發放在重要位置，做到人才保障滿足，資金保障滿足，材料保障滿足。
公司斥巨資分別與華中科技大學組建產學研平臺，成立傳感器研發中心，創立華中科技大學--米朗生產實習基地，分批次組織華中科技大學學生來公司實習實訓，并定期向華科提供研發課題。通過近20年的努力，公司的傳感器項目已成為亞洲行業龍頭，每年向國內外提供60多萬件優質的傳感器系列產品，產品已被廣泛應用于汽車、塑料機械、傳動設備、測量系統、醫療等領域，在產品的可靠性、穩定性、精度、抗惡劣環境等性能方面得到市場的廣泛認可。公司研發的傳感器系列產品，獲得了歐盟的CE認證，獲得了行業各類專業證書，磁致伸縮位移/液位傳感器系列產品獲得國家防爆認證，分別為本安防爆認證和隔爆認證。
公司與上海同濟大學合作共同研發軌道交通檢測設備項目，研發成功的軌距尺產品獲得國家鐵道科技研究院認證，軌距尺系列產品已成功投放市場，受到用戶好評，接觸網系列產品已研發成功，正投入全國鐵路系統測試中。
在2003年，公司引進眾多國內外頂尖的行業技術人才，在機械潤滑油泵系統行業發力，開發了各類集中潤滑油泵系統產品。機械運轉離不開傳感器，也離不開潤滑油，米朗公司的潤滑油泵系列產品經過幾代更新，現在完全可以滿足國內外各類自動化機械各種潤滑方案的需求，產品技術先進，種類豐富，已經處于行業領先地位。
公司技術力量儲備雄厚，管理規范，注重知識產權保護，現擁有有效發明及實用新型專利45項，外觀專利35項，技術力量的儲備，為企業戰略發展培植了新的增長點。
現場管理是品質保證，為向客戶提供高品質產品，公司加大現場管理力度，為員工創造一個優良的生產環境，公司先后獲得了ISO9001：2000國際質量體系認證和ISO9001：2008國際質量體系認證。
加大信息化建設，公司緊跟時代步伐，實施企業+互聯網工程，公司投資兩千萬元購置各種信息化設備，加大培訓互聯網人才力度，促使公司產品和人才素質始終處于世界領先地位。
公司設立研發中心、工程技術部、制造部、檢測中心、傳感器事業部、潤滑油泵系統事業部，管材事業部、市場部、全國各地均設有直屬辦事處或代理機構，按現代化的標準組織設計、生產和銷售。
公司秉承“注重質量、精益求精、用戶至上、誠信為本”的宗旨，為客戶提供更優質的產品和更周到的服務。嚴格按照國際質量認證標準組織設計和生產，米朗MIRAN系列產品獲得湖北省著名商標，公司獲得湖北省“重合同守信用”單位。
當今世界，科技進步突飛猛進，我們精益求精，努力做好自己專業領域的產品；我們誠信經營，不斷探索先進理念；我們愿意為實現中國制造2025的目標盡自己的一份力量，助力中國經濟不斷滾滾向前。

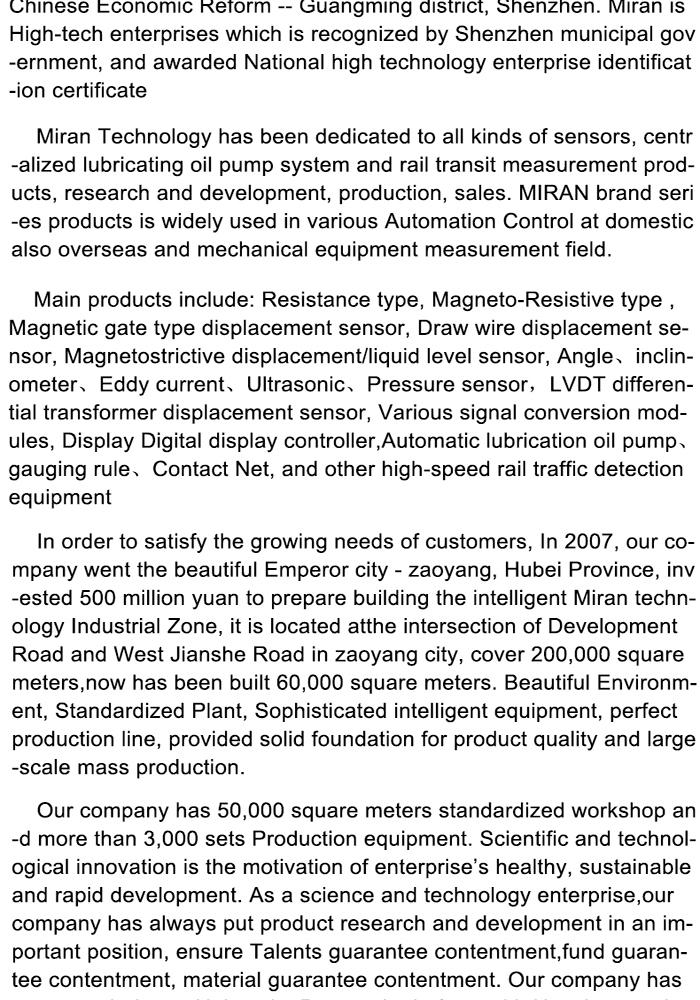

Shenzhen Miran Technology Co.,Ltd is located at the front place in Chinese Economic Reform -- Guangming district, Shenzhen. Miran is High-tech enterprises which is recognized by Shenzhen municipal government, and awarded National high technology enterprise identification certificate
Miran Technology has been dedicated to all kinds of sensors, centralized lubricating oil pump system and rail transit measurement products, research and development, production, sales. MIRAN brand series products is widely used in various Automation Control at domestic also overseas and mechanical equipment measurement field.
Main products include: Resistance type, Magneto-Resistive type , Magnetic gate type displacement sensor, Draw wire displacement sensor, Magnetostrictive displacement/liquid level sensor, Angle、inclinometer、Eddy current、Ultrasonic、Pressure sensor，LVDT differential transformer displacement sensor, Various signal conversion modules, Display Digital display controller,Automatic lubrication oil pump、gauging rule、Contact Net, and other high-speed rail traffic detection equipment
In order to satisfy the growing needs of customers, In 2007, our company went the beautiful Emperor city - zaoyang, Hubei Province, invested 500 million yuan to prepare building the intelligent Miran technology Industrial Zone, it is located at
the intersection of Development Road and West Jianshe Road in zaoyang city, cover 200,000 square meters,now has been built 60,000 square meters. Beautiful Environment, Standardized Plant, Sophisticated intelligent equipment, perfect production line, provided solid foundation for product quality and large-scale mass production.

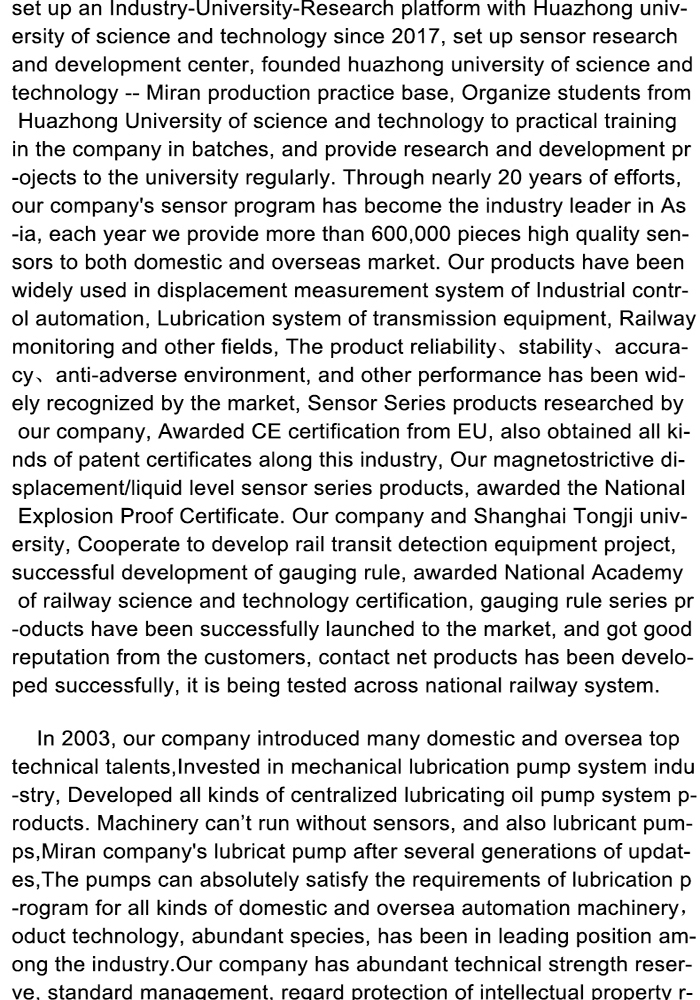

Our company has 50,000 square meters standardized workshop and more than 3,000 sets Production equipment. Scientific and technological innovation is the motivation of enterprise’s healthy, sustainable and rapid development. As a science and technology enterprise,our company has always put product research and development in an important position, ensure Talents guarantee contentment,fund guarantee contentment, material guarantee contentment. Our company has set up an Industry-University-Research platform with Huazhong university of science and technology since 2017, set up sensor research and development center, founded huazhong university of science and technology -- Miran production practice base, Organize students from Huazhong University of science and technology to practical training in the company in batches, and provide research and development projects to the university regularly. Through nearly 20 years of efforts, our company's sensor program has become the industry leader in Asia, each year we provide more than 600,000 pieces high quality sensors to both domestic and overseas market. Our products have been widely used in displacement measurement system of Industrial control automation, Lubrication system of transmission equipment, Railway monitoring and other fields, The product reliability、stability、accuracy、anti-adverse environment, and other performance has been widely recognized by the market, Sensor Series products researched by our company, Awarded CE certification from EU, also obtained all kinds of patent certificates along this industry, Our magnetostrictive displacement/liquid level sensor series products, awarded the National Explosion Proof Certificate. Our company and Shanghai Tongji university, Cooperate to develop rail transit detection equipment project, successful development of gauging rule, awarded National Academy of railway science and technology certification, gauging rule series products have been successfully launched to the market, and got good reputation from the customers, contact net products has been developed successfully, it is being tested across national railway system.

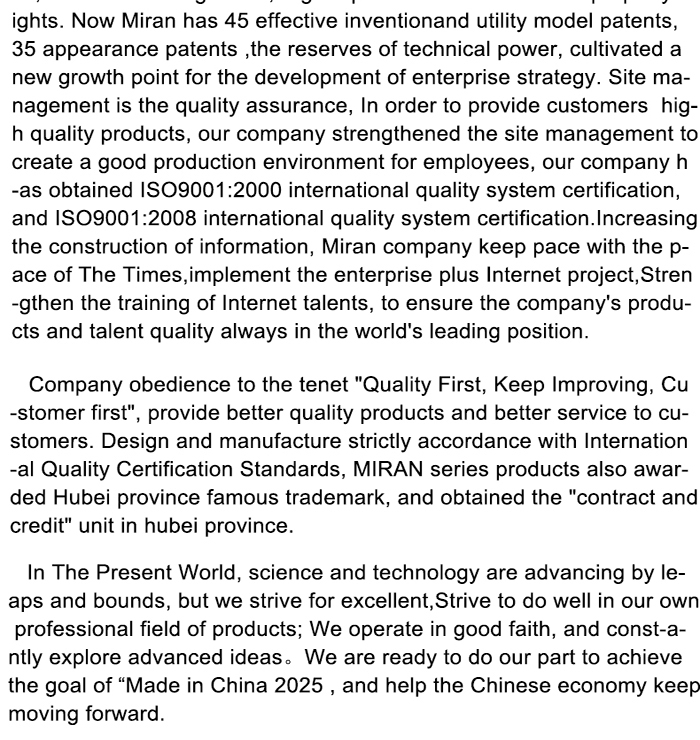

In 2003, our company introduced many domestic and oversea top technical talents,Invested in mechanical lubrication pump system industry, Developed all kinds of centralized lubricating oil pump system products. Machinery can’t run without sensors, and also lubricant pumps,Miran company's lubricat pump after several generations of updates,The pumps can absolutely satisfy the requirements of lubrication program for all kinds of domestic and oversea automation machinery，Advanced product technology, abundant species, has been in leading position among the industry.Our company has abundant technical strength reserve, standard management, regard protection of intellectual property rights. Now Miran has 45 effective invention and utility model patents, 35 appearance patents ,the reserves of technical power, cultivated a new growth point for the development of enterprise strategy. Site management is the quality assurance, In order to provide customers high quality products, our company strengthened the site management to create a good production environment for employees, our company has obtained ISO9001:2000 international quality system certification, and ISO9001:2008 international quality system certification.Increasing the construction of information, Miran company keep pace with the pace of The Times,implement the enterprise plus Internet project,Strengthen the training of Internet talents, to ensure the company's products and talent quality always in the world's leading position.
